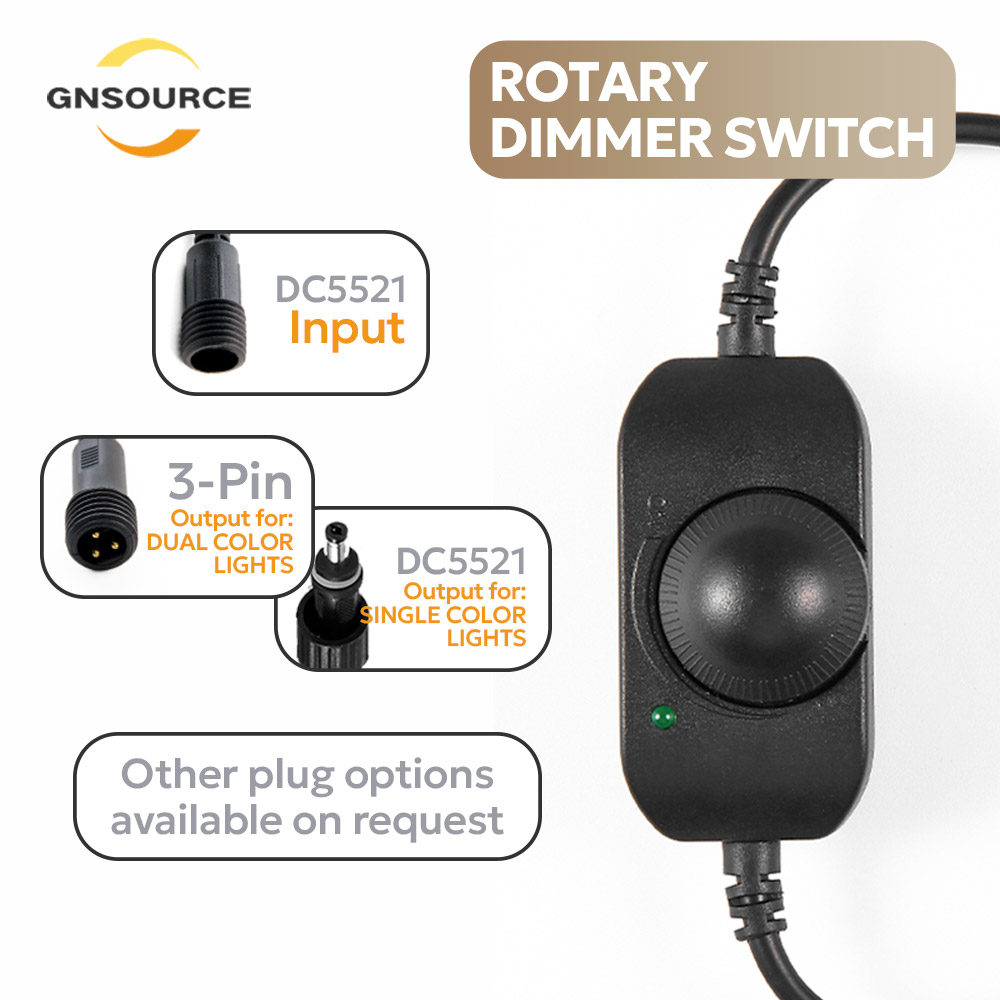

12-24V DC Manual Knob LED Dimmer Switch Controller for LED Strip
A-Product Name:
0-100% adjustable Inline led lamp dimmer knob switches for single color led strip
B-Description:
Single color dimmer can achieve step-less dimming. It adopts the knob control manner. According to actual needs, users can transfer the light to the appropriate brightness.
C-Features:
- 10%~100% brightness adjustable
- Easy to install and simple to use
- Adjust the light soft and stable, no flickering.
- PWM digital dimming, avoid rush current, protect your LED lights
- Mainly use to adjust single color LED light lamps and Led Strip.
- Constant voltage and constant current output, can be connected with amplifiers to extend its load.
Product Application
Direction for use
Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire
before you turn on the power;

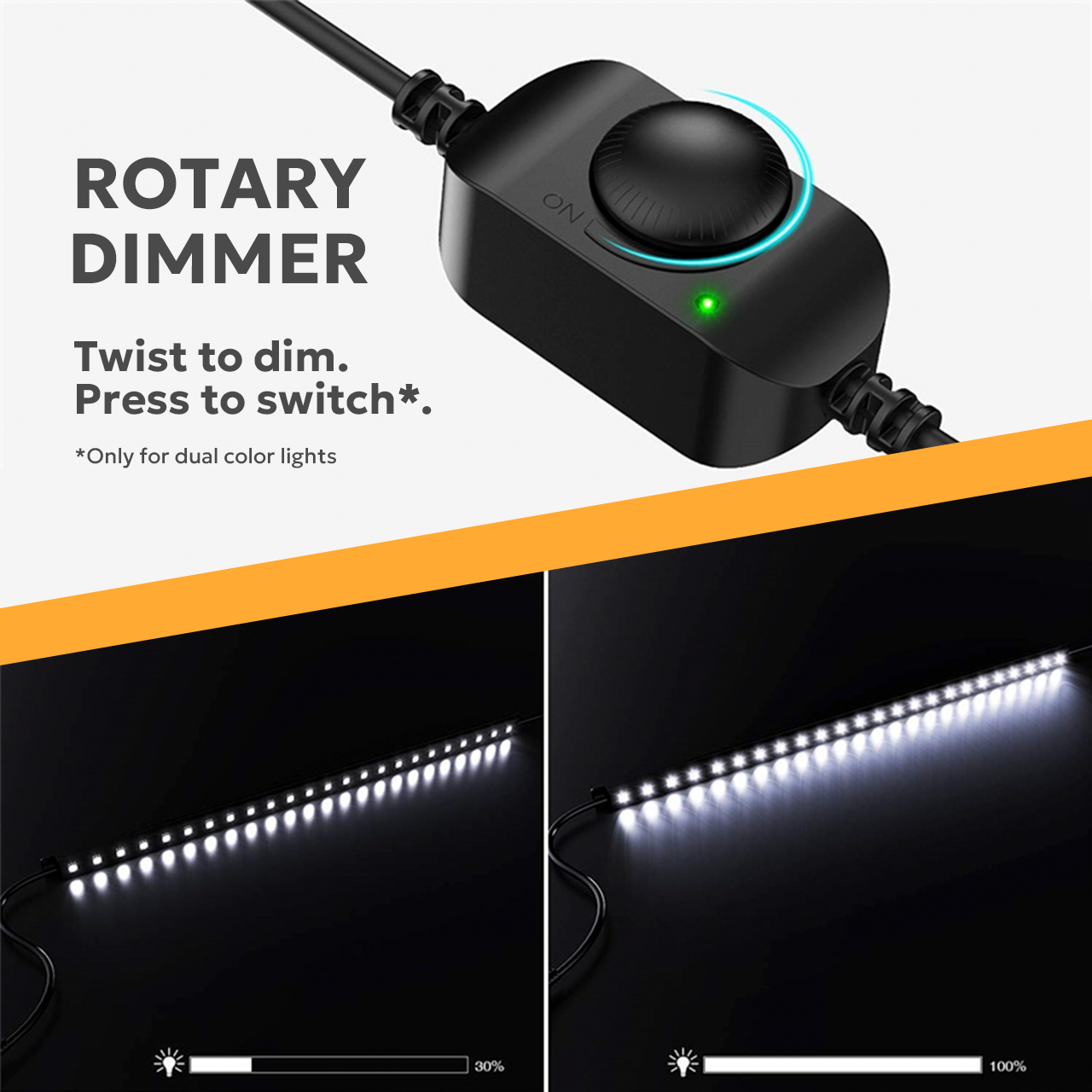

Adopt rotary button, its function as follows:
Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.
Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.
